"Grand Prix" 1/8 by PSM

Dear Collectors,

New 1/8 Car project:
Rolling Chassis "Grand Prix" by PSM.

______________________________

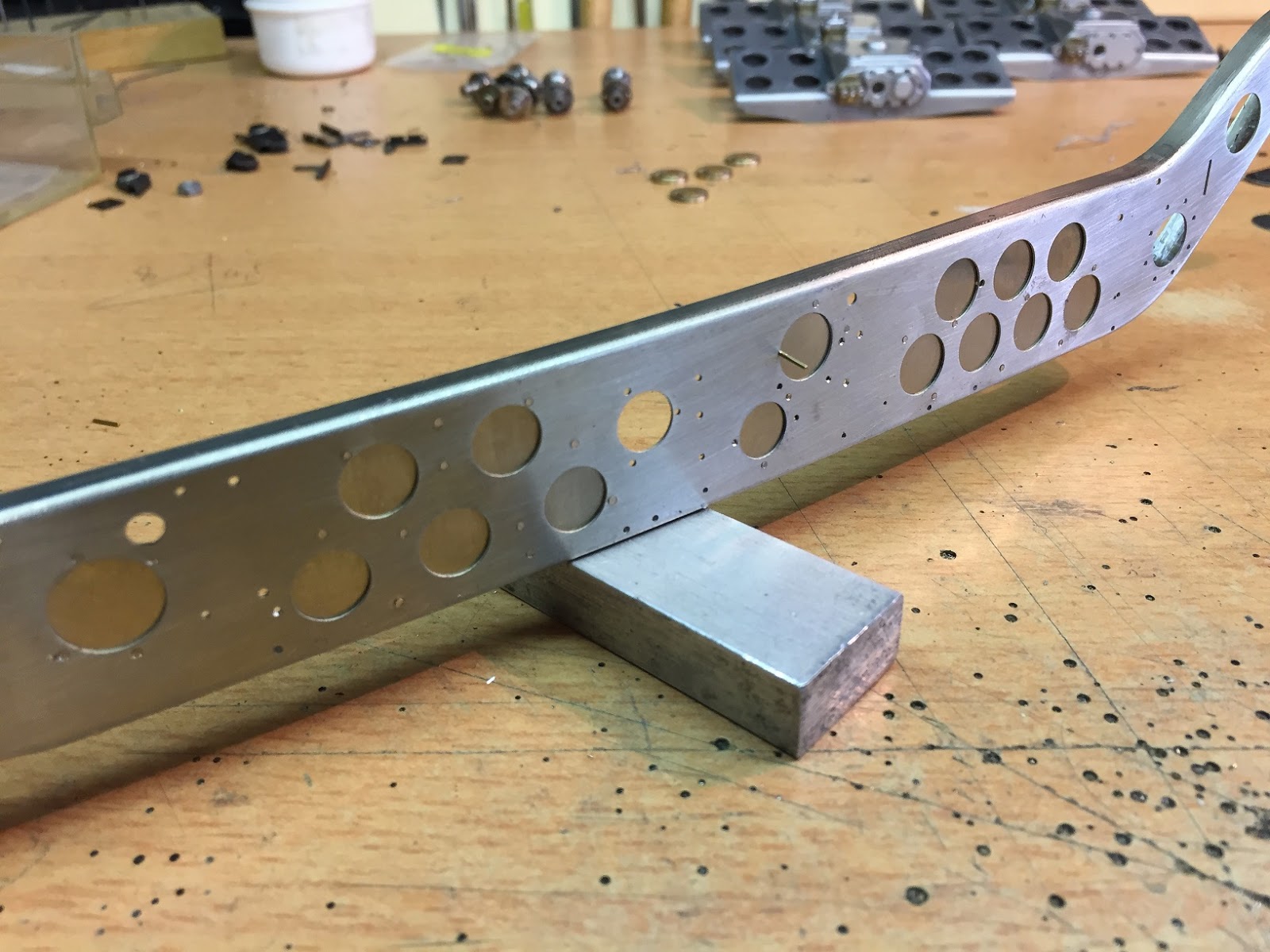

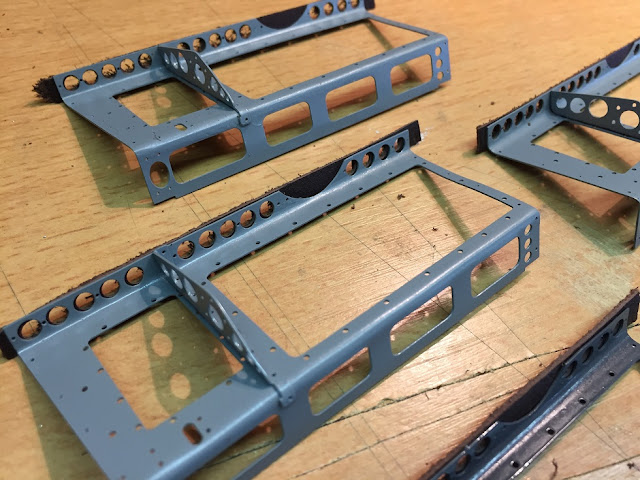

Chassis Frame

Chassis Frame - Parts to be welded

Front hanger details

Raw castings ( aluminium and Brass)

Fitting Rivets on Bulkhead

Steering Sleeve - BUGATTI T59

BUGATTI T59 ignition - In progress

Ignition axle Bush

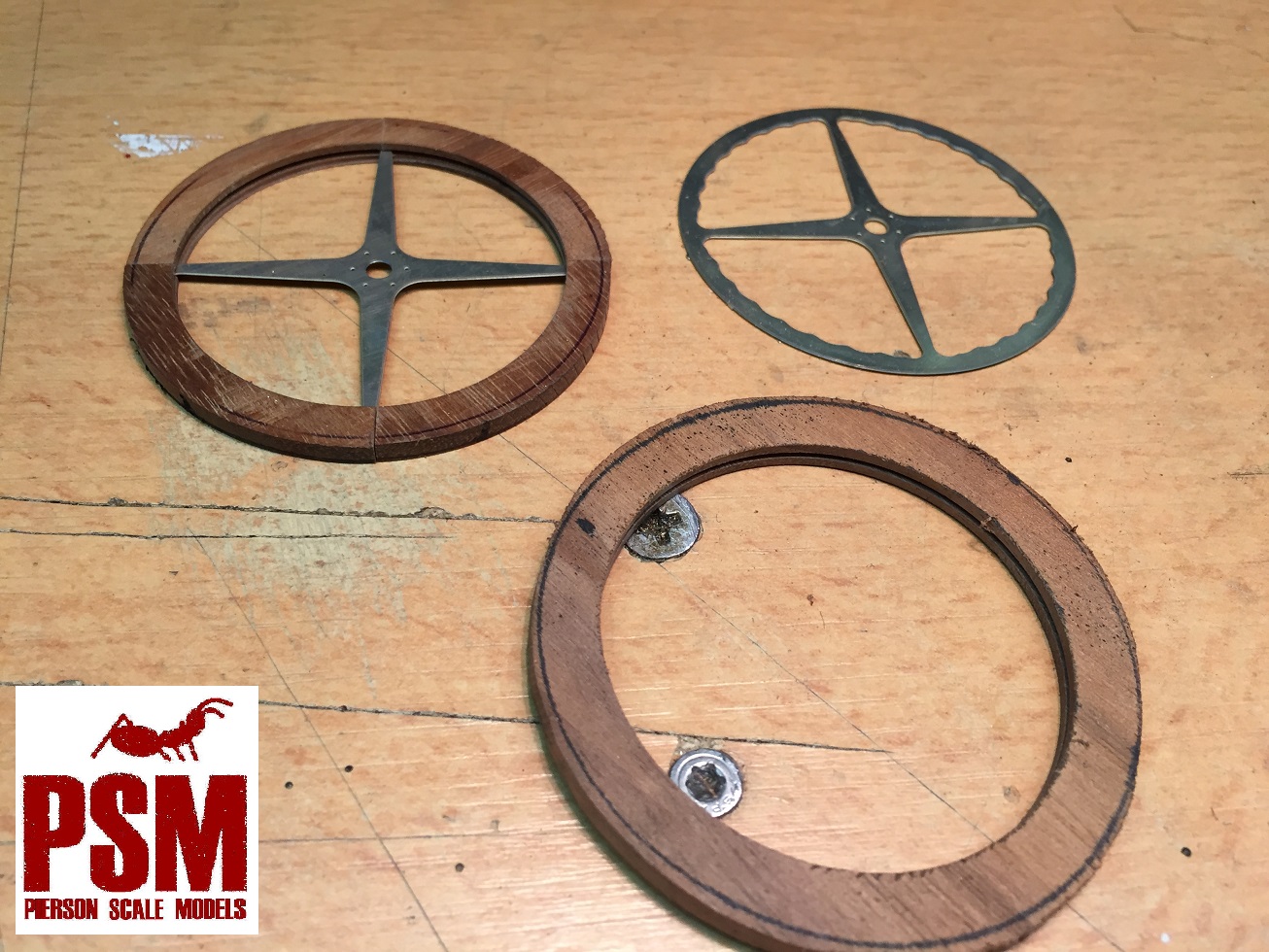

Steering wheel sleeve

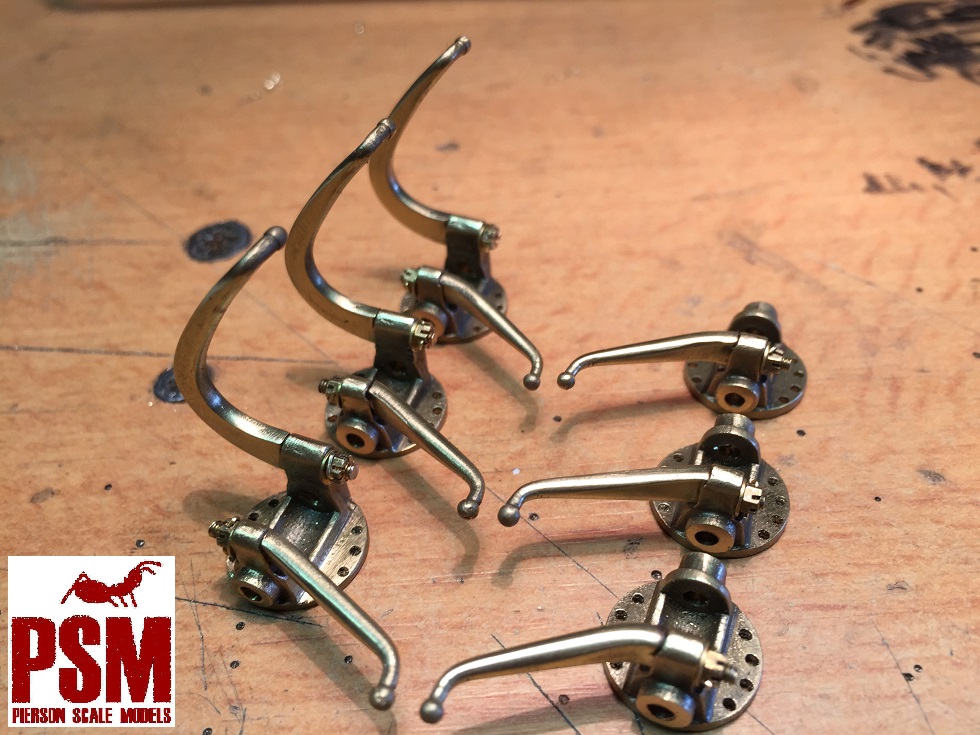

Oil Valve Selector

Oil selector - Ready to be connected

Ignition Brackets on dash

Rear selector brass Casing

Axle Between Gear box and clutch

Ready to be Polished

Polishing by lathe

Degreasing Process

Neutralization

Rhodium Plating

Cleaning

 Fitted on the gearbox

Blank plates - Rivets fitting

Raw castings machining (Milling operations)

 Carburators and Compressor in progress

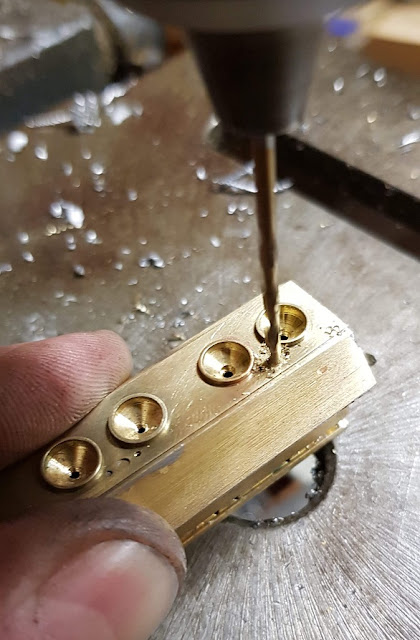

 Aluminium Carburators Drilling operation - 0.5mm Drill

M0,6 Threading operations

Carbs linkeages

Carbs Gears

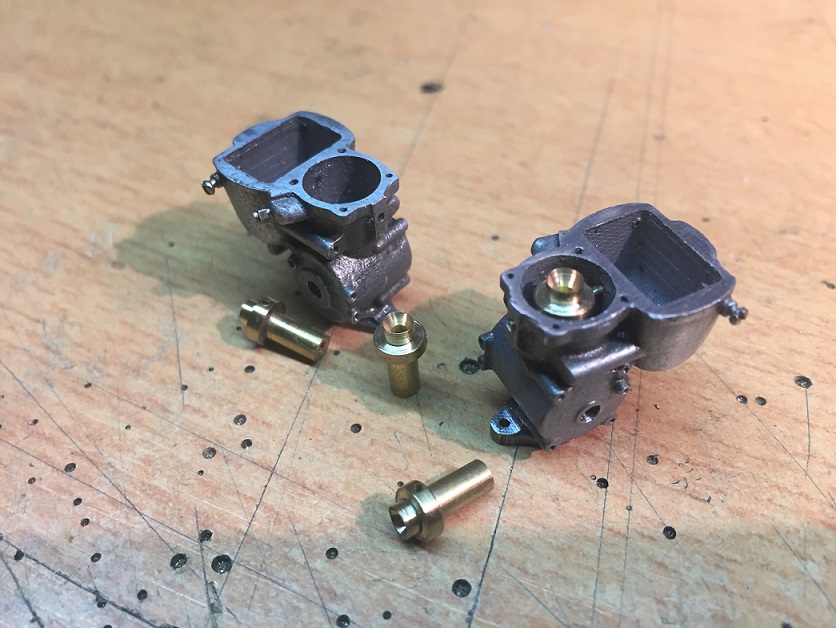

Carbs assembly

Cams aluminium covers

Spark Plugs seats on Main block

Water manifold

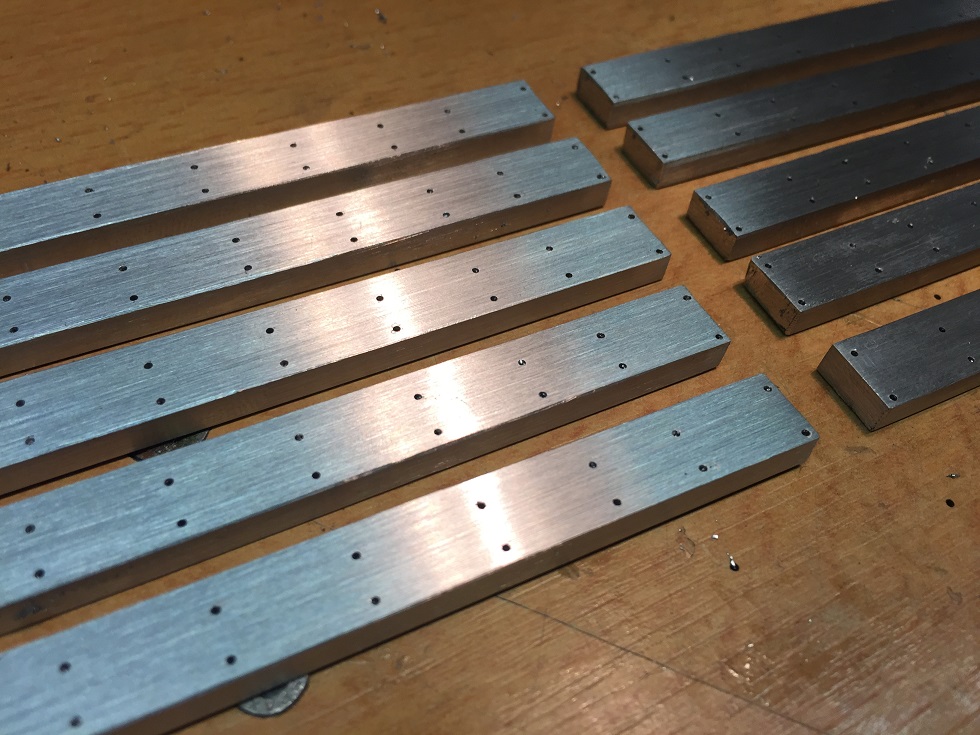

Final Brushed aspect - Before and after

Front Oil Tubbings ready for welding

Bonnet's Louvers

Bonnets on progress

Louvers tool

Air inlet Manifold

Water inlet Manifold adjustment

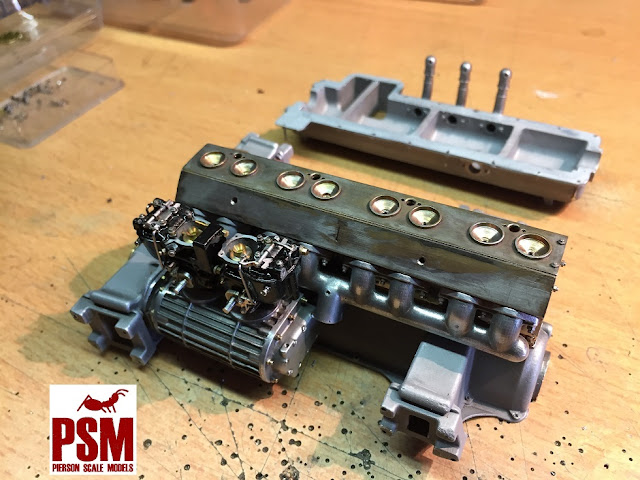

 Main block - Rhodium Plated

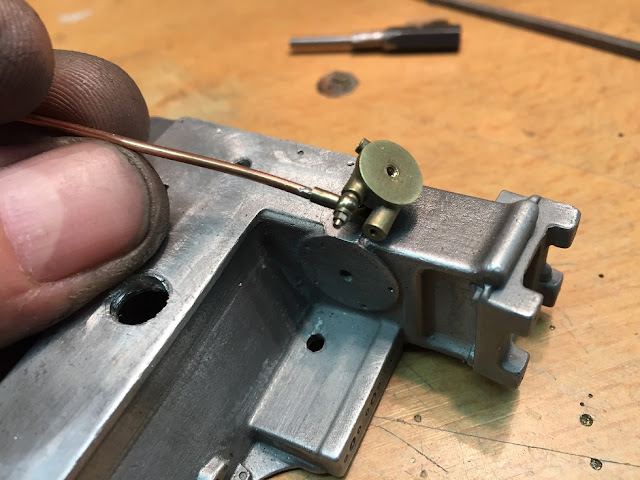

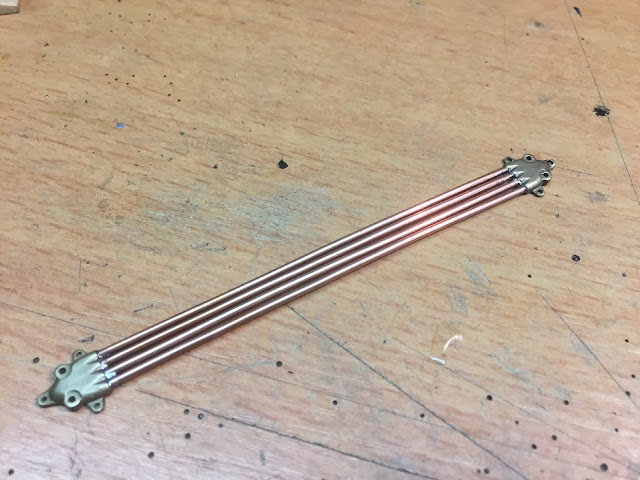

 Oil Tubbing on progress

Oil filter

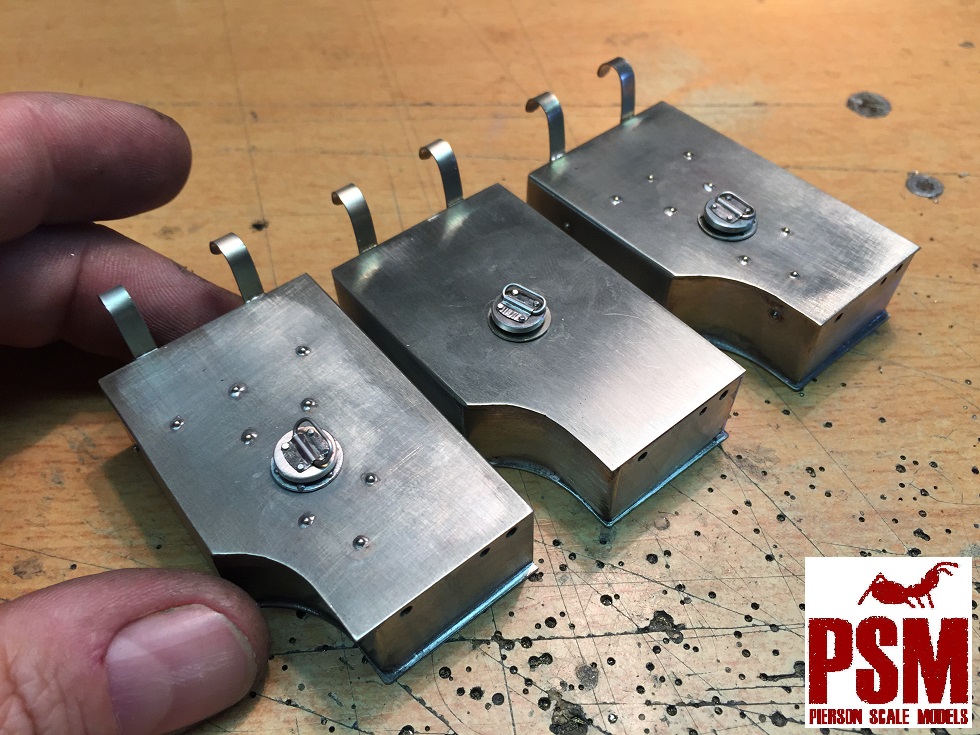

Oil "Radiator"

 Air Inlet Manifold

 Carborator's setting on compressor

Pump Adjustment

 Raw and completed

On the block

Oil Sump - Not genuine

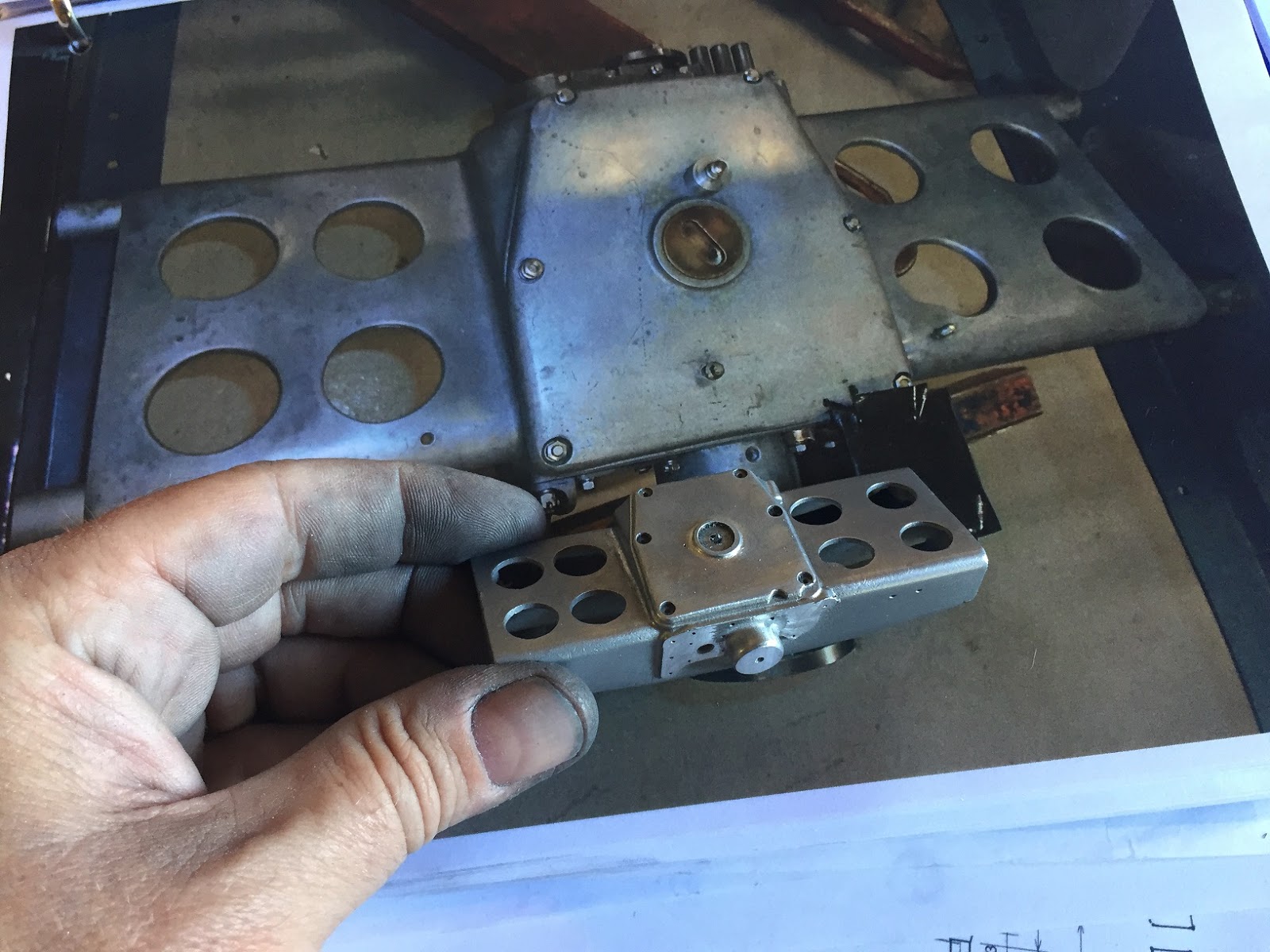

Clutch assembly - Fitting test

Clutch assembly/ Gearbox - Fitting test on chassis

Ready to be fitted

 Steering Relay - Raw matérials

Steering relay - On progress

Steering relay completed

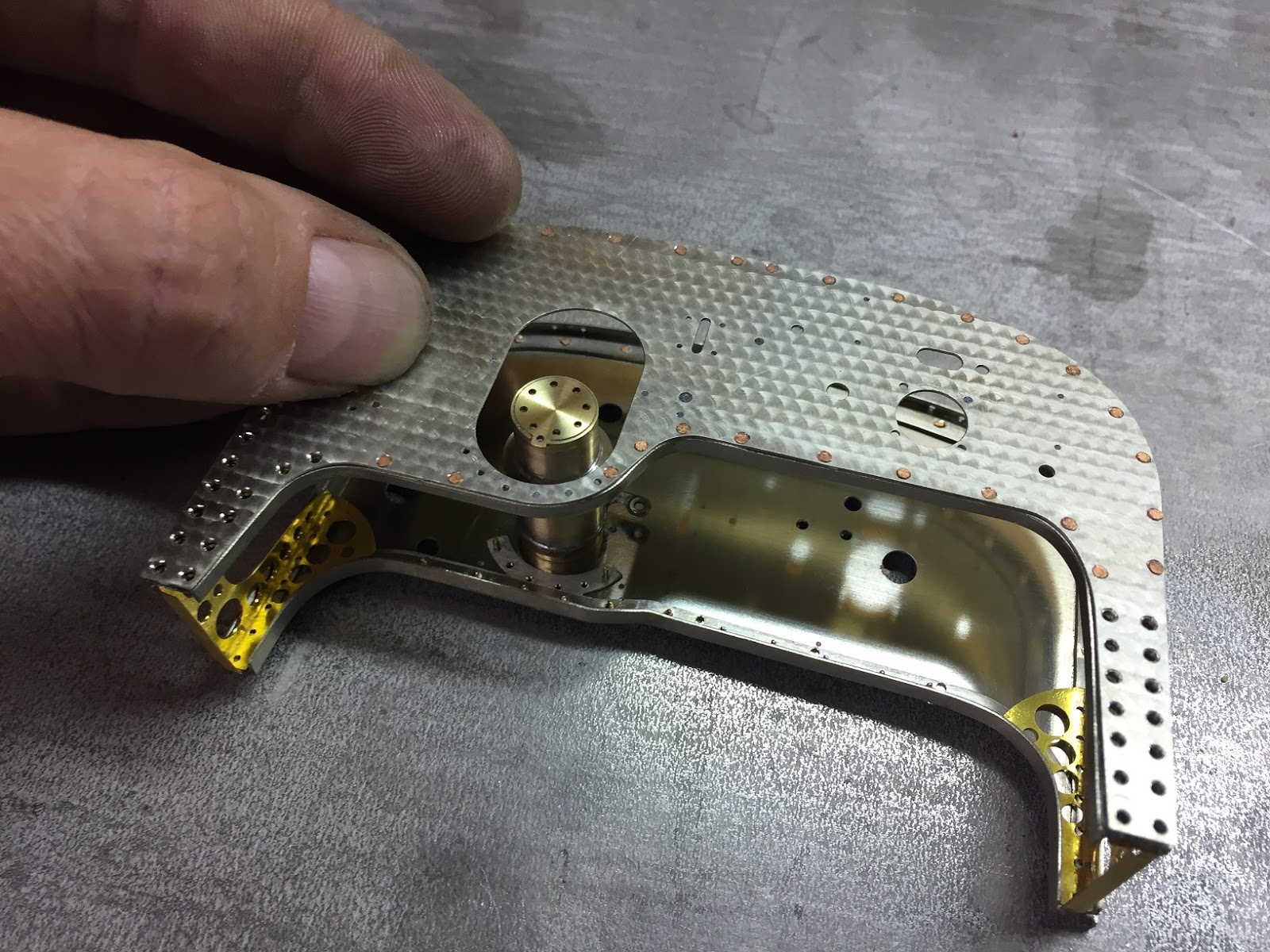

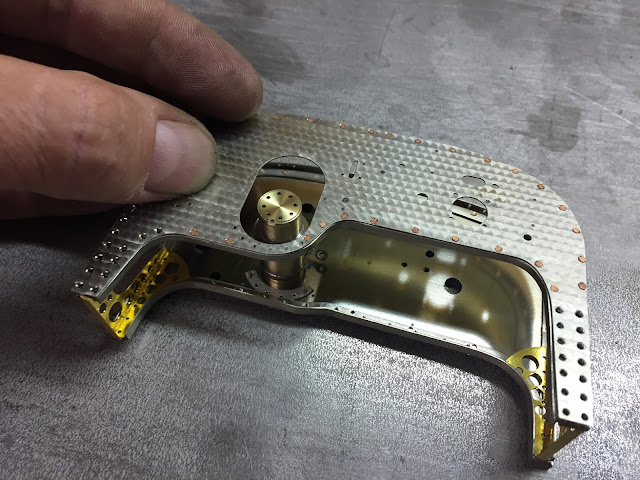

BUGATTI T59 - Front Bulkhead sheets and bits

Ready for painting Job

 Leather seal on the firewall

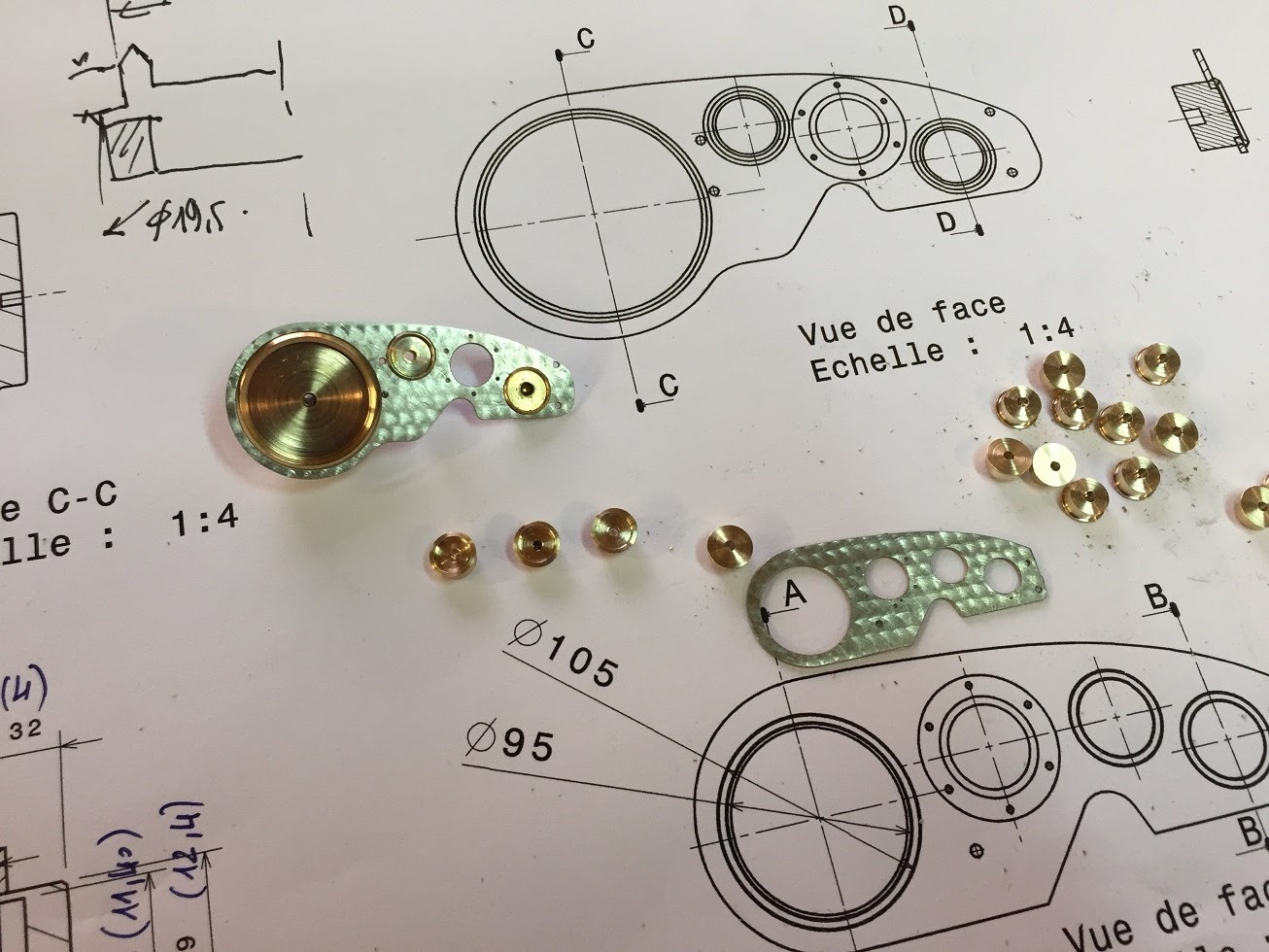

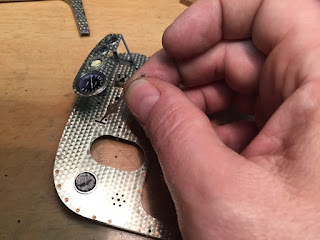

Dash Bord on progress



 Ty^pical Front Face shaping

 Front absorbers on progress

 Rear Hangers and Leaf springs

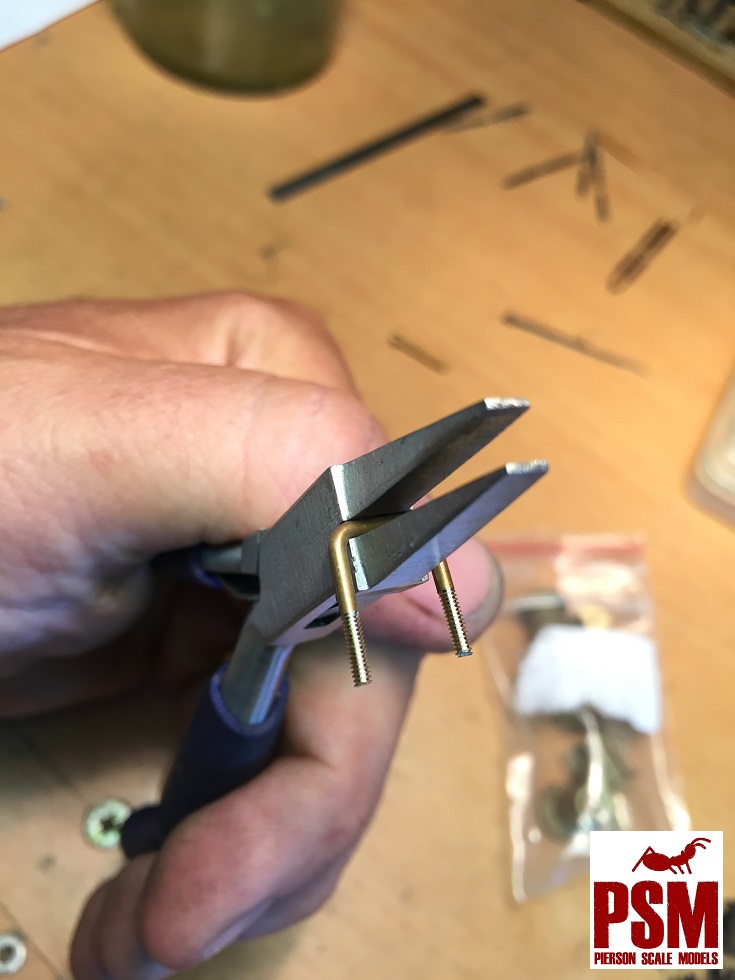

 M1,6 Threadings

Manual bending...

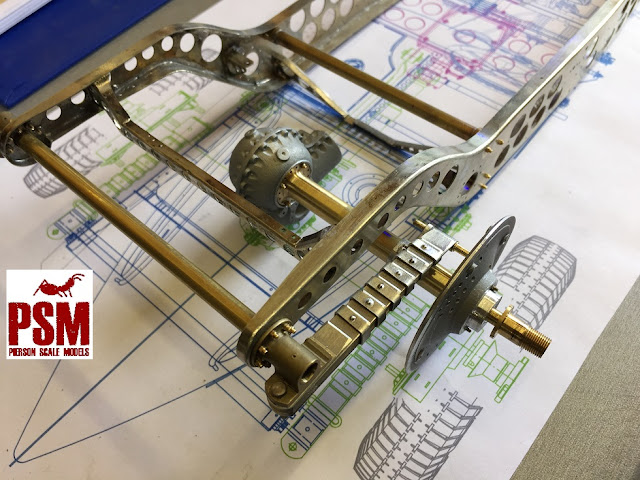

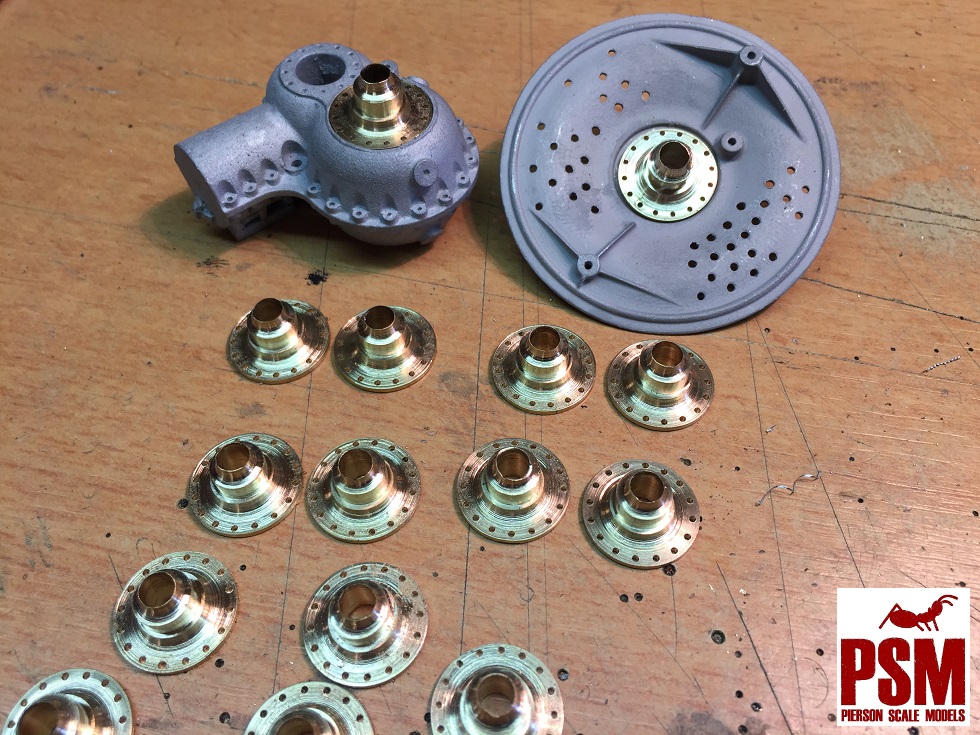

 Rear Axle - Flanges and tubes

 Special Tool: Flanges drilling operation
